Warehouse lighting 100~300W led high bay fixtures UFO-C SERIES-60

• Product description:

Durable and compact, Rome series UFO high bay light is a nifty and flexible product for brightening up large indoor spaces. It is designed for requirements of flexibility by keeping a low budget and offering options like reflectors, motion sensors and emergency batteries, absolutely with high utility.

• Applications:

Rome series UFO high bay light can be used in workshop, alley, loading dock, doorway, pathway, factory warehouse, exhibition hall, parking area, indoor basketball court, etc.

• Features:

IP65 ingress protection rating, suitable for damp locations.

CCT tunable: 3000K / 4000K / 5000K or 4000K / 5000K / 6000K.

High efficiency up to 170lm/W (130lm/W optional).

Fin-shape housing design, better heat dissipation performance.

Microwave motion sensor function available.

Reflector optional.

Emergency battery backup available.

Emergency time: 1.5 hours / 3 hours.

Emergency power: 30W/15W.

0-10V / 1-10V dimming control.

Temperature performance data:

Ambient temperature: -40°C to 55°C (-40°F to 131°F)

• Ordering information: Part number example

Example: U-RO1 100W YZTXX

• Technical datas:

Beam Angle 60° / 90° / 120°

Impact Resistance IK10

Ingress Protection IP65

Dimmable 0-10V / 1-10V dimming

• Packing information:

• Microwave sensor:

Accessories and dimensions:

• Description:

The ANT-5-4 is a motion sensor that dims lighting from high to low based on movement. This slim, compact sensor is designed for installation inside the bottom of a lighting fixture. The sensor plus module is connected to the ANT-5-4 sensor socket through a 1.30" diameter hole in the bottom of the fixture.

The sensor uses microwave sensing technology that reacts to changes in movement within the coverage area. Once the sensor stops detecting movement and the time delay has passed, the light will change from high mode to low mode, and eventually to the off position when needed.

Sensor must directly "see" motion of a person or moving object to detect them, so careful consideration must be given to sensor luminaires' placement and lens selection. Avoid placing the sensor where obstructions may block the sensor's line of sight.

• Specification:

Input Voltage: 12-24 VDC

Max. Current Sink:30mA ± 5%

Detection Radius: 25%/50%/75%/100% (1-8m)

HF System: 5.8GHz ± 75MHz

Mounting Height: Max.50ft (15 meters)

Working Temperature: -20°C to 60°C (-4°F to 140°F)

Intelligent Cotrol: Microwave sensor

Dimming Control Output: 0-10V

Ingress Protection: IP65

Light Control: 24H / 10lux / 30lux / 50lux

Transmission Power: < 0.2mW

Time Setting: 10s / 1min / 5min / 10min / 15min 20min / 30min / 60min

• More details:

Warm-up time is 15 seconds. After the sensor is connected to the input power at the first time, the light will be on for 15 seconds and then enter the normal dimming mode.

Factory Default Setting: 100% sensitivity.

Hold-on Time: 10 seconds, daylight sensor is 30lux.

Dimming Time: 60 minutes.

Any setting is changed by remote control. Dimming Level: 30%.

• Corridor function:

This design achieves third-level control inside the motion sensor, which is for some areas where a light change notice is required before switch-off. The sensor offers 3 levels of light: 100%, dimmed light (natural light is insufficient) and off, and 2 periods of selectable waiting time: motion hold-time and stand-by period, selectable daylight threshold and freedom of detection area.

Emergency driver:

• Description:

Emergency battery backup is available, which enables the UFO high bay light to work at both normal operation and emergency situation. With the function of self diagnosis, it can be self-diagnostic monthly and annually.

• Specification:

Input Voltage: 100-347 VAC

Output Voltage: ≤ 175VDC

Intput Power: 15W

Output Power: 30W / 40W / 60W

Battery: Li-ion

Charging Time: ≥ 24 hours

Emergency Time: 90 minutes

Input Current: ≤ 200mA

Intelligent Cotrol: Wireless remote control

Dimmable: 0-10V / 1-10V dimming

Working Temp.: 0°C to 50°C (32°F to 122°F)

Driver Dimension: ∅5.12 x 9.84 inch

• Self-diagnosis function:

The integrated self-diagnostic circuitry will automatically conduct tests of 30 minutes per month and 90 minutes per year to verify proper emergency capability per Life Safety Code requirements.

Press the test button to cut off the power of the AC driver and switch the system to emergency mode.

Released NFPA 101. Life Safety Code outlines the following schedule:

• Monthly - Ensure that the test button is illuminated. Conduct a 30-minute discharge test by depressing the test button. The LED load should operate at reduced output.

• Annually - Ensure that the test button is illuminated. Conduct a full 90-minute discharge test. The unit should operate as intended for the duration of the test.

Dimensions for driver (in inches): Dimension for remote control (in inches):

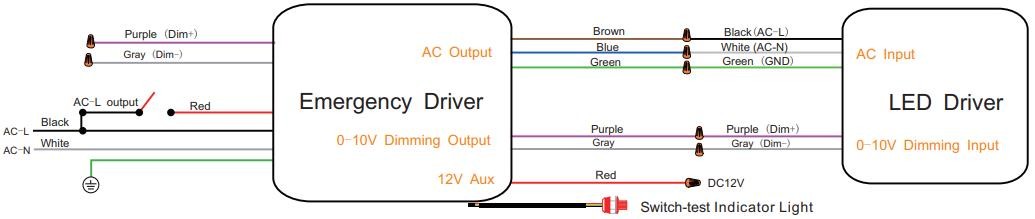

• Driver diagram:

• Mounting methods for driver:

• Remote control:

Instruction for remote control:

ON : To test the emergency function, press the ON button and it will switch to emergency lighting and the indicator light will be off. Then press the OFF button, it will return to normal lighting. When main supply is off (emergency mode), pressing the OFF button can turn off emergency function

OFF: Remote control must be pointed at the indicator light within 45 degree angle to receive a signal. Remote control is operated by two AAA batteries (not included).

• Wiring: Warnings:

Dimming wires must be connected to the LED driver to ensure operation.

It is recommended that emergency output power should be more than 20 percent of output power of UFO high bay.

• Wiring diagrams:

With dimmer: for UFO LED High Bay ≤300W with 0-10V dimming function

With wall switch (without dimmer): for UFO LED High Bay ≤300W with 0-10V dimming function

Without wall switch and dimmer, 24-hour lighting: for UFO LED High Bay ≤300W with 0-10V dimming function

With sensor (100-277 / 100-347 VAC): for UFO LED High Bay ≤300W with 0-10V dimming function

With sensor (12 VDC): for UFO LED High Bay ≤300W with 0-10V dimming function

• Mounting ways:

• Dimensions (in inches):

• Photometrics:

• QA:

Q1. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q2. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
