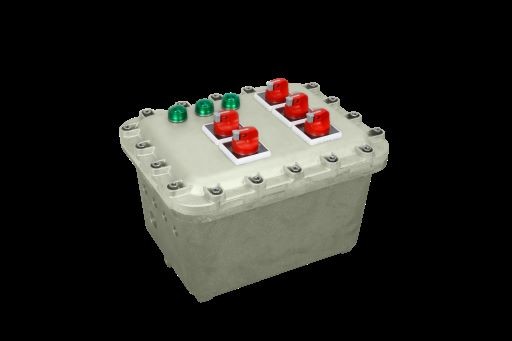

Class 1 Division 1 Explosion Proof Junction Box ABS

Explosion PD61 Series

• Features:

Copper free aluminum, plastic-sprayed surface.

Ex d type flameproof enclosure.

Can be used as terminal box, distribution box and control box.

Degree of protection: IP66.

• Application:

• Technical Data:

Marking ATEX: Ⅱ 2 G Ex db ⅡB+H₂ T□ Gb 1)

Ⅱ 2 D Ex tb ⅢC T□ Db IP66

Note: See the technical data of EX-PD61-JX-IIB, 1) EX-PD61-ZM, EX-PD61-DL, EX-PD61-ZC-A, EX-PD61-LK, EX-PD61-QD

Marking IECEx: Ex db ⅡB+H₂ T□ Gb 1)

Ex tb ⅢC T□ Db IP66

Note: See the technical data of EX-PD61-JX-IIB, 1) EX-PD61-ZM, EX-PD61-DL, EX-PD61-ZC-A, EX-PD61-LK, EX-PD61-QD

Marking UL1203: Class I, Division 1, Groups C, D

Class I, Division 2, Groups C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Standards: EN 60079-0, EN 60079-1,EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-31

Rated Voltage: Max.100V AC, 50/60Hz

Rated Current: Max.1,200A

Ambient Temperature:-60℃ to + 60℃

Cable Entry :Standard M□×1.5 Plug, See the Specification Table

Entry Direction :Bottom

Cable Entry Device :Optional

Type of Flameproof Joint :Cylindrical Joint, Threaded Joint, PlaneJoint

Installation Type :Wall Mounting(Standard); Bracket Mounting(Optional)

• Technical Data

Built-in Components:Main switch: miniature circuit breaker(MCB) or molded case circuit breaker (MCCB)(Noted: earth leakage protection on

request)

Branch switch: miniature circuit breaker(MCB) or molded case circuit breaker (MCCB) (Noted: earth leakage protection on request)

Terminal Indicator light EX-D: Red, green, yellow, blue

Button EX-A: Red, green, yellow

AC contactor

Thermal overload relay

PLC programmer

Soft starter

Control switch EX-K

Ammeter/Voltmeter

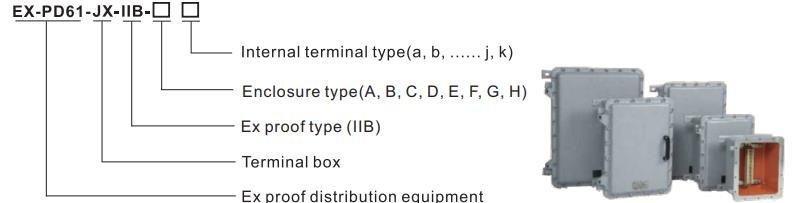

• Ordering Guide

• Dimensional Draings

• Specification

Code	Max Dissipated Power(W)			Max Rated Current	External Dimension			Internal Dimension			Mounting Dimension
	T4/T130℃	T5/T95℃	T6/T80℃		A	B	C	a	b	c	d	e	f
EX-PD61-A	200	120	80	63A	250	200	170	192	142	131	180	130	10
EX-PD61-B	200	120	80	63A	300	200	170	242	142	131	230	130	10
EX-PD61-C	240	140	100	100A	350	200	170	292	142	131	280	130	10
EX-PD61-D	350	200	130	200A	350	300	270	290	240	229	280	230	12
EX-PD61-E	500	280	160	320A	450	350	280	378	278	233	365	265	12
EX-PD61-F	620	350	200	500A	560	450	280	488	328	225	475	315	14
EX-PD61-G	700	400	250	1000A	720	560	350	640	480	285	620	460	14
EX-PD61-H	800	500	350	1000A	980	720	375	880	620	290	820	560	18

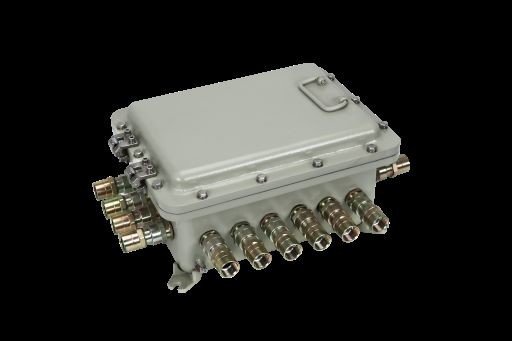

• EX-PD61 Distribution Equipment For Terminal Box Use

Suitable for terminal box of distribution system.

Note: 1. The EX-PD61 terminal box wiring terminals have various arrangements methods.

2. It can be customized according to customer requirements and always meets the restrictions of the certificate. The maximum number of terminals and the maximum number of holes on the side meet the requirements of power dissipation and mechanical strength of the enclosure.

3. This table is for reference only.

1). Please specify the direction and size of each cable entry.

2). Cable entry is optional, and EX-QM-B(Ex d) or EX-QM-C(Ex d) is recommended.

• IIIustration of EX-PD61 Distribution Equipment for Terminal Box Use

Cable Cross-sectional Area(mm)²	Table for Max number of fitted terminal
	Enclosure type number(Note: The enclosure type number is correspondent to the size. For example: A stands for the enclosure of 200x250)
	A	B	C	D	E	F	G	H
2.5(a)	20	28	36	72	100	140	270	264	396
4(b)	18	25	32	64	90	130	240	248	372
6(c)	15	21	28	56	80	100	210	200	300
10(d)	12	18	24	24	60	80	165	160	240
16(e)	9	15	20	20	25	70	135	136	204
35(f)	-	5	5	10	15	24	64	90	135
70(g)	-	-	-	5	10	18	25	72	-
120(h)	-	-	-	-	5	5	12	42	-
185(i)	-	-	-	-	-	5	10	-	-
240(j)	-	_	-	-	-	5	5	-	-
300(k)	-	-	-	-	-	5	5	-	-
Terminal Arrangement (Number of terminal rows)	1	1	1	2	2	2	2	2	3

• EX-PD61 Distribution Equipment for Control Box Use

Suitable for control unit distribution system

Note: 1. EX-A buttons, EX-D indicators, EX-K control switches, EX-B-A ammeters and EX-A-V voltmeters, etc. are included in EX-PD61 control boxes.

2. The control box can be used for on-off operation of circuit,as well as the remote control or local control of the strat,stop,corotation and inversion of motor,When equipped with ammeter,it also can monitor the running of motor and circuit status.

3. It can be customized in accordance with customer's requirements and conforms to the usage limits of conformity certificate. The number of cover components and the max. number of holes on the side can meet the requirements of dissipated power and enclosure mechanical strength.

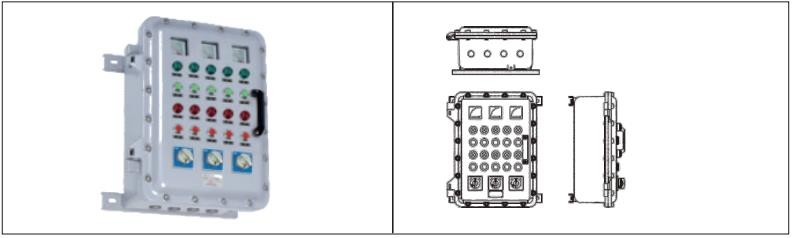

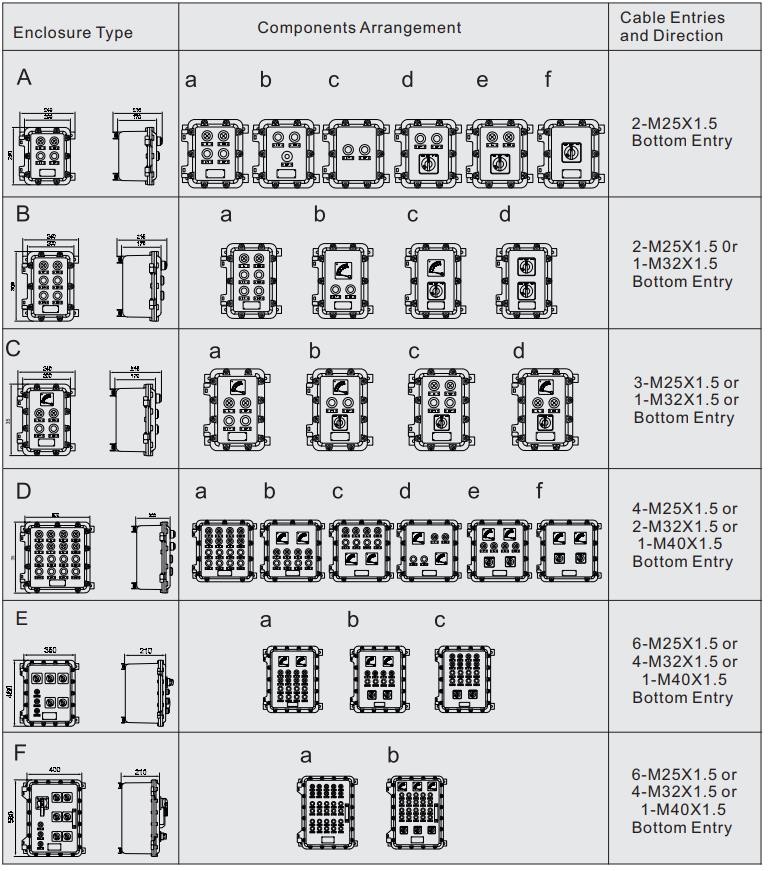

• Example Diagram for Control Box Use

• EX-PD61 Distribution Equipment for Distribution Box Use

Suitable for power unit of distribution system

Note: 1.MCB (Miniature Circuit Breaker)or MCCB(Moulded Case Circuit Breaker),AC contactor thermal overload relay,PLC programmer,soft starter,EX-A pushbuttons.EX-D indication, EX-K control switches,EX-B-A ammeters and EX-A-V voltmeters etc.are included in the box.

2. The control box can be used for power distribution or on-off operation of the circuit, as well as the control of the start, stop, corotation and inversion of motor and provide comprehensive protection for motor. It can be set up for two-site control or multi-site control.

3. It can be customized in accordance with customer's requirements and conforms to the usage limits of conformity certificate. The number of cover components and max. number of holes on the side can meet the requirements of dissipated and encloure mechanical strength.

• Example Diagram for Distribution Box Use

• Features

Copper free aluminum, plastic-sprayed surface.

Ex d type flameproof enclosure.

Degree of protection: IP66-IP67.

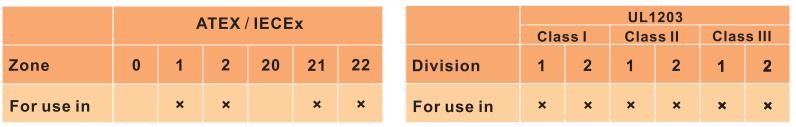

• Application

• Technical Data

Marking ATEX: II2 G Ex db IIB+H2 T6/T5 Gb

II2 D Ex tb IIIC T80ºC/95ºC Db IP66

Marking IECEx:Ex db ⅡB+H₂ T6/T5 Gb

Ex tb ⅢC T80℃/T95℃ Db IP66

Marking UL1203: Class I, Division 1, Groups C, D

Class I, Division 2, Groups C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Standards: EN 60079-0, EN 60079-1,EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-31

Rated Voltage : Max.800V

Rated Current: Cable Cross Section(mm²) 2.5 4 6 10 16 35 70 240

Rated Current(A) 24 32 41 57 76 125 192 400

Ambient Temperature:-60℃ to + 60℃

Type of Flameproof Joint:Plane Joint

• Ordering Guide

• Specification of Cable Entry

	A,B,C,D stands for the directiond of cable entries
	Max.number of cable entry
Enclosure type	A		B		C		D		E		F		G
Dimension	A/B	C/D	A/B	C/D	A/B	C/D	A/B	C/D	A/B	C/D	A/B	C/D	A/B	C/D
M20*1.5	5	8	5	10	5	12	16	20	22	30	24	40	45	65
M25*1.5	5	7	5	9	5	10	12	15	15	20	18	27	30	44
M32*1.5	2	3	2	4	2	6	9	12	12	16	14	21	25	36
M40*1.5	2	2	2	3	2	4	5	6	6	9	8	12	15	21
M50*1.5	1	2	1	3	1	3	4	5	5	7	5	9	12	12
M63*1.5	1	2	1	2	1	3	2	3	3	5	4	7	7	10
Note: 1. No cable entry for standard design. Cable entries shall be drilled by user. 2. No cable entry device.

• IIIustration of EX-PD61 Distribution Equipment for Terminal Box Use

Cable Cross-sectional Area(mm)²	Table for Max number of fitted terminal
	Enclosure type number(Note: The enclosure type number is correspondent to the size. For example: A stands for the enclosure of 200x250)
	A	B	C	D	E	F	G	H
2.5(a)	20	28	36	72	100	140	270	270
4(b)	18	25	32	64	90	130	240	240
6(c)	15	21	28	56	80	100	210	210
10(d)	12	18	24	24	60	80	165	165
16(e)	9	15	20	20	25	70	135	135
35(f)	-	5	5	10	15	24	64	64
70(g)	-	-	-	5	10	18	25	25
120(h)	-	-	-	-	5	5	12	12
185(i)	-	-	-	-	-	5	10	10
240(j)	-	_	-	-	-	5	5	5
300(k)	-	-	-	-	-	5	5	5
Terminal Arrangement (Number of terminal rows)	1	1	1	2	2	2	2	2

• Features

Copper free aluminum, stainless steel.

Plastic-sprayed surface.

Earth leakage protection device is optional.

Degree of protection: IP66-IP67.

• Application

• Technical Data

Marking ATEX: Ⅱ 2 G Ex d ⅡB T6 Gb

Ⅱ 2 D Ex tb ⅢC T80℃ Db IP66

Marking IECEx: Ex db ⅡB+H₂ T6 Gb

Ex tb ⅢC T80℃ Db IP66

Marking UL1203: Class I, Division 1, Groups C, D

Class I, Division 2, Groups C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Standards : EN 60079-0, EN 60079-1,EN 60079-31, IEC 60079-0, IEC 60079-1, IEC 60079-31

Rated Voltage: Max.690V AC, 50/60Hz

Rated Current: Max.100A

Branch Current: 1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A

Ambient Temperature: -60℃ to + 55℃

Degree of Protection: IP66, IP67

Cable Entry: Standard M□×1.5 Plug(See the Selection Table)

Entry Direction: Bottom(in and out)

Cable Entry Device:Optional

Type of Flameproof Joint: Cylindrical Joint, Threaded Joint, Plane Joint.

Installation Type: Wall mounting(standard); Bracket mounting(optional)

Built-in Components:

Main switch: miniature circuit breaker(MCB) or molded case circuit break(Noted: earth leakage protection on request) Branch switch: miniature circuit breaker(MCB) or molded case circuit breaker (MCCB) (Noted: earth leakage protection on request)

Terminal Indicator: Red, green, yellow

• Ordering Guide

• Electrical diagram

• Selection table of EX-PD61-ZM illumination distribution boxes

Code	Description					Cable entries
	Main switch	Number of branch	Branch switch	Branch current	Number of indicator
EX-PD61-ZM-/4□/K/□	MCB or MCCB Current Max.100A	4	MCB 1P/2P	1A 2A 4A 6A 10A 16A 20A 25A 32A On request	3	1*M32*1.5+4*M25*1.5
EX-PD61-ZM-/6□/K/□		6			3	1*M40*1.5+6*M25*1.5
EX-PD61-ZM-/8□/K/□		8			3	1*M40*1.5+8*M25*1.5
EX-PD61-ZM-/10□/K/□		10			3	1*M40*1.5+10*M25*1.5
EX-PD61-ZM-/12□/K/□		12			3	1*M40*1.5+12*M25*1.5
EX-PD61-ZM-4/□	_	4	MCB 1P/2P	1A 2A 4A 6A 10A 16A 20A 25A 32A On request	3	1*M32*1.5+4*M25*1.5
EX-PD61-ZM-6/□		6			3	1*M40*1.5+6*M25*1.5
EX-PD61-ZM-8/□		8			3	1*M40*1.5+8*M25*1.5
EX-PD61-ZM-10/□		10			3	1*M40*1.5+10*M25*1.5
EX-PD61-ZM-12/□		12			3	1*M40*1.5+12*M25*1.5

• Odering instruction:

1. Please specify the number and size of the cable inlets and the mounting surface of the housing.

2. The user provides the electrical diagram. If you need light controller, AC contactor or thermal relay control, please specify.

3. Please specify special requirements when ordering.

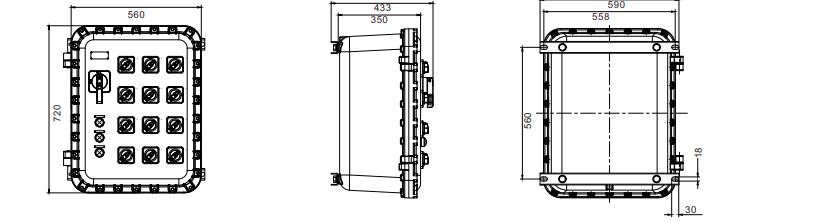

Dimensional drawings

EX-PD61-ZM-/4□/K/□

EX-PD61-ZM-/6□/K/□

EX-PD61-ZM-/8□/K/□

EX-PD61-ZM-/10□/K/□

EX-PD61-ZM-/12□/K/□

• Features

Copper free aluminum, stainless steel.

Plastic-sprayed surface.

Earth leakage protection device is optional.

Degree of protection: IP66-IP67.

• Application

• Technical Data

Marking ATEX: II 2 G Ex db ⅡB + H₂ T6 Gb

II 2 D Ex tb ⅢC T80℃ Db IP66

Marking IECEx: Ex db Ⅱ B+H₂ T6 Gb

Ex tb ⅢC T80℃ Db IP66

Marking UL1203: Class I, Division 1, Groups C, D

Class I, Division 2, Groups C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Standards: EN60079-0, EN60079-1 , EN60079-31, IEC60079-0, IEC 60079-1, IEC 60079-31

Rated Voltage: Max.690V AC, 50/60Hz

Branch Current: : 1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 250A, 320A, 400A

Ambient Temperature: -60℃ to + 55℃

Degree of Protection: IP66,IP67

Cable Entry: Standard M□× 1.5 Plug ( See the Selection Table )

Entry Direction: Bottom (in and out)

Cable Entry Device: Optional

Type of Flameproof Joint: Wall Mounting(Standard); Bracket Mounting(Optional)

Built-in Components: Main switch: miniature circuit breaker (MCB)or molded case circuit breaker(MCCB)

(Noted:earth leakage protection on request)

Branch switch: miniature circuit breaker (MCB)or molded case circuit breaker(MCCB)

(Noted:earth leakage protection on request)

Terminal

Indicator: Red, green, yellow

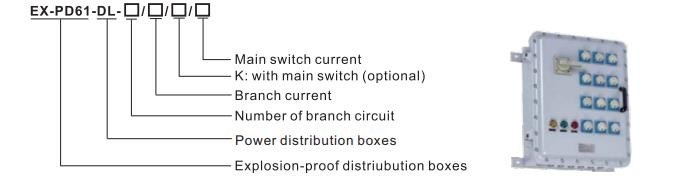

• Ordering Guide

• Selection table of EX-PD61-ZM power distribution boxes

Code	Description					Cable entries
	Main switch	Number of branch	Branch switch	Branch current	Number of indicator
EX-PD61-DL-/4□/K/□	MCB or MCCB Current Max.100A	4	MCB or MCCB 3P	1A 2A 4A 6A 10A 16A 20A 25A 32A 40A 50A 63A 80A 100A 125A 160A 200A 250A 320A 400A On request	3	1*M50(M63,M75,M90)*1.5 4*M25(M32,M40,M50,M63)*1.5
EX-PD61-DL-/6□/K/□		6			3	1*M50(M63,M75,M90)*1.5 6*M25(M32,M40,M50,M63)*1.5
EX-PD61-DL-/8□/K/□		8			3	1*M50(M63,M75,M90)*1.5 8*M25(M32,M40,M50,M63)*1.5
EX-PD61-DL-/10□/K/□		10			3	1*M50(M63,M75,M90)*1.5 10*M25(M32,M40,M50,M63)*1.5
EX-PD61-DL-/12□/K/□		12			3	1*M50(M63,M75,M90)*1.5 12*M25(M32,M40,M50,M63)*1.5
EX-PD61-DL-4/□	_	4	MCB or MCCB 3P	1A 2A 4A 6A 10A 16A 20A 25A 32A 40A 50A 63A 80A 100A 125A 160A 200A 250A 320A 400A On request	3	1*M40*1.5+4*M25*1.5
EX-PD61-DL-6/□		6			3	1*M40*1.5+6*M25*1.5
EX-PD61-DL-8/□		8			3	1*M40*1.5+8*M25*1.5
EX-PD61-DL-10/□		10			3	1*M40*1.5+10*M25*1.5
EX-PD61-DL-12/□		12			3	1*M40*1.5+12*M25*1.5

Odering instruction: 1. Please specify the number and size of the cable inlets and the mounting surface of the housing.

2. The user provides the electrical diagram. If you need light controller, AC contactor or thermal relaycontrol, please specify.

3. Please specify special requirements when ordering

• Features

Copper free aluminum, stainless steel.

Plastic-sprayed surface.

Earth leakage protection device is optional.

Degree of protection: IP66-IP67.

• Application

• Technical Data

Marking ATEX: II 2 G Ex db ⅡB + H₂ T6 Gb

II 2 D Ex tb ⅢC T80℃ Db IP66

Marking IECEx: Ex db Ⅱ B+H₂ T6 Gb

Ex tb ⅢC T80℃ Db IP66

Marking UL1203: Class I, Division 1, Groups C, D

Class I, Division 2, Groups C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Standards: EN60079-0, EN60079-1 , EN60079-31, IEC60079-0, IEC 60079-1, IEC 60079-31

Rated Voltage: Max.415V AC

Rated Current: 10A

Ambient Temperature: -60℃ to + 60℃

Degree of Protection: IP66,IP67

Cable Entry: Standard M□× 1.5 Plug ( See the Selection Table )

Entry Direction: Bottom

Cable Entry Device: Standard M□× 1.5 Plug ( See the Selection Table )

Type of Flameproof Joint: Cylindrical Joint,Threaded Joint,Plane Joint.

Built-in Components: EX-A Pushbutton, EX-D Indicator,EX-K Control Switch, Explosion-proof Ammeter/Voltmeter

Installation Type: Wall Mounting

Indicator: Red, green, yellow

• Ordering Guide

• Selection table of control stations EX-PD61-ZC

• Features

Copper free aluminum, stainless steel.

Plastic-sprayed surface.

Earth leakage protection device is optional.

Degree of protection: IP66-IP67.

• Application

• Technical Data

Marking ATEX: II 2 G Ex db ⅡB + H₂ T6 Gb

II 2 D Ex tb ⅢC T80℃ Db IP66

Marking IECEx: Ex db Ⅱ B+H₂ T6 Gb

Ex tb ⅢC T80℃ Db IP66

Marking UL1203: Class I, Division 1, Groups C, D

Class I, Division 2, Groups C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Standards: EN60079-0, EN60079-1 , EN60079-31, IEC60079-0, IEC 60079-1, IEC 60079-31

Type of Flameproof Joint: Cylindrical Joint,Plane Joint.

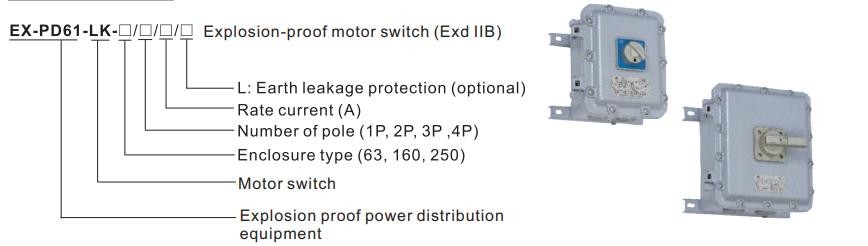

• Ordering Guide

• Dimensional Drawing

EX-PD61-LK-63/□/□/□

EX-PD61-LK-160/□/□/□

EX-PD61-LK-250/□/□/□

• Features

Copper free aluminum, stainless steel.

Plastic-sprayed surface.

Earth leakage protection device is optional.

Degree of protection: IP66-IP67.

• Application

• Technical Data

Marking ATEX: II 2 G Ex db ⅡB + H₂ T6 Gb

II 2 D Ex tb ⅢC T80℃ Db IP66

Marking IECEx: Ex db Ⅱ B+H₂ T6 Gb

Ex tb ⅢC T80℃ Db IP66

Marking UL1203: Class I, Division 1, Groups C, D

Class I, Division 2, Groups C, D

Class II, Division 1, Groups E, F, G

Class II, Division 2, Groups F, G

Class III

Standards: EN60079-0, EN60079-1 , EN60079-31, IEC60079-0, IEC 60079-1, IEC 60079-31

Rated Voltage: 380/400V AC, 50/60Hz

Rated Current: 10A

Ambient Temperature: T6/T80 ℃ for Tamb: -60℃ to +50℃;

T5/T95 ℃ for Tamb: -60℃ to +60℃

Cable Entry: Standard M□× 1.5 Plug ( See the Selection Table )

Entry Direction: Bottom(in and out)

Cable Entry Device: Optional

Type of Flameproof Joint: Cylindrical Joint,Threaded Joint,Plane Joint.

Built-in Components: Miniature circuit breaker(MCB) or moulded case circuit breaker( MCCB)

AC contactor, thermal overload relay, indicator, button

• Ordering Guide

• Selection table

Direct Start
Model	Control motor power(kw)	Rated current of circuit breaker(A)	Adjustable range of setting current of thermalr elay(A)	Rated current of contactor(A)	Cable entry size
EX-PD61 QD-4/16/7~10	4	16	7~10,le=8.5	9	2*M25*1.5
EX-PD61 QD-5.5/20/9~13	5.5	20	9~13,le=11	12	2*M25*1.5
EX-PD61 DQ-7.5/25/12~18	7.5	25	12~18,le=16	18	2*M32*1.5
EX-PD61 QD-11/32/16~24	11	32	16~24,le=23	25	2*M32*1.5
EX-PD61 QD-15/40/23~32	15	40	23~32,le=30	32	2*M32*1.5
EX-PD61 QD-18.5/50/30~38	18.5	50	30~38,le=36	40	2*M40*1.5
EX-PD61 QD-22/63/37~50	22	63	37~50,le=46	50	2*M40*1.5

Forward and Reverse Start
Model	Control motor power(kw)	Rated current of circuit breaker(A)	Adjustable range of setting current of thermalr elay(A)	Rated current of contactor(A)	Cable entry size
EX-PD61 QD-4/16/7~10 N	4	16	7~10,le=8.5	9	2*M25*1.5
EX-PD61 QD-5.5/20/9~13 N	5.5	20	9~13,le=11	12	2*M25*1.5
EX-PD61 DQ-7.5/25/12~18 N	7.5	25	12~18,le=16	18	2*M32*1.5
EX-PD61 QD-11/32/16~24 N	11	32	16~24,le=23	25	2*M32*1.5
EX-PD61 QD-15/40/23~32 N	15	40	23~32,le=30	32	2*M32*1.5
EX-PD61 QD-18.5/50/30~38 N	18.5	50	30~38,le=36	40	2*M40*1.5
EX-PD61 QD-22/63/37~50 N	22	63	37~50,le=46	50	2*M40*1.5

• QA:

Q1. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q2. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

Shenzhen CODT technology co.,Ltd
