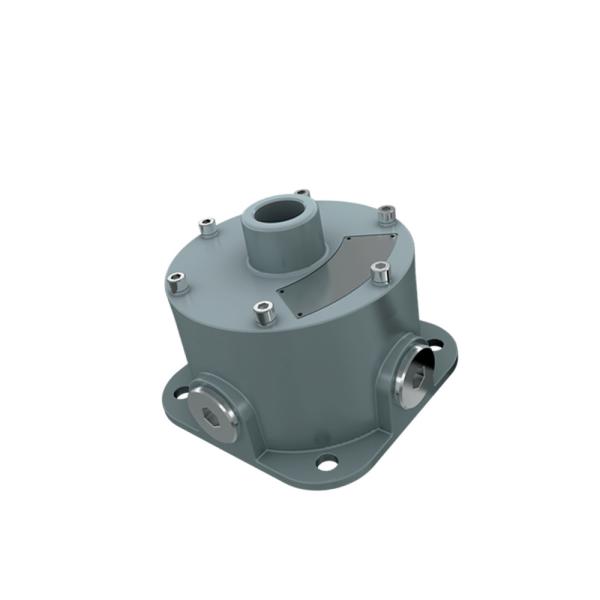

Custom ip66 aluminum metal for electronic equipment inverter explosion proof junction box

• FEATURES

The EX-HD51-X-X-X series junction boxes intend to be used for explosive atmospheres.

For general wiring in hazardous locations.

Copper free aluminum enclosure.

Ex d type flameproof enclosure.

Four types of enclosures available.

The degree of protection is IP66.

• APPLICATION

• ORDERING GUIDE

• TECHNICAL DATA

IECEx Certification For EX-HD51-A1, A2A, A2B, A3,A4, A5, B3, B3A, C4A, C4B, C6, C8, KB1 series junction box:

Ex db IIC T6/T5 Gb (Except EX-HD51-KB1/*), Ex db IIB+H2 T6/T5 Gb (EX-HD51-KB1/*), Ex tb IIIC T80℃/T95℃ Db

ATEX Certification For EX-HD51-A1, A2A, A2B, A3,A4, A5, B3, B3A, C4A, C4B, C6, C8, KB1 series junction box:

II2 GD Ex db IIC T6/T5 Gb (Except EX-HD51-KB1/*) Ex db IIB+H2 T6/T5 Gb (EX-HD51-KB1/*) Ex tb IIIC T80°C/T95°C Db

Rated Voltage :Max.800VAC

Rated Current:24A, 27A, 32A, 41A

Ambient Temperature:-60℃ to + 55℃ (-76℉ to +131℉)

Type of Flameproof Joint:Type A, B, C: Threaded joints Type KB1: Flanged and threaded joints

• SPECIFICATION

The rated voltage of the junction box is 800Vac. In the final installation, cable entry amounts and terminal information shall comply with following table:

• DIMENSION (Unit:mm)

• FAQ

  Q1. Can I have a sample order ?

  Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
  Q2: Do you offer guarantee for the products?
  Yes, we offer 2-5 years warranty to our products.
  Q3: How to deal with the faulty?
  Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
  Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
  will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
