led food light for food factory flour and fine particle production and storage B Series

• Certifications

Marking ATEX

II3 G Ex ec IIC T3C Gc

II2 Ex tb IIIC T135°C Db IP66

Marking IECEx

Ex ec IIC T3C GC

Ex tb IIIC T135°C Db IP66

Ingress Protection: IP66

Marking UL844 (North American)

Class I, Division 2,Groups A, B, C, D

Class II, Division 1,Groups E, F, G

Class II, Division 2,Groups F, G

Class III

Ambient Temperature: -40°C to 60°C (-40°F to 140°F) Ex ec IIC T3C GC Ex tb IIIC T135°C Db IP66 Marking IECEx

Food Safety: NSF

• Standard Materials:

Housing: Aluminum

Lens: Tempered glass

Hardware: Stainless steel

• Key Features:

Dimmable and battery backup function is available.

High-quality SMT LED and Meanwell driver.

Heavy-duty and high impact resistance.

Replaceable LED board and drivers.

Integrated junction box for driver.

Marine rating powder coated finish treatment.

Various installation ways for different applications.

Glass lens or polycarbonate lens for making different beam angles.

• Additional Features:

High efficacy up to 140 lumens per watt

5-year warranty.

Wide beam angle of 120°.

Three connection cable entry points makes installation and configuration more resonable.

Low temperature applications to -40°C (-40°F) and high temperature up to 60°C (140°F).

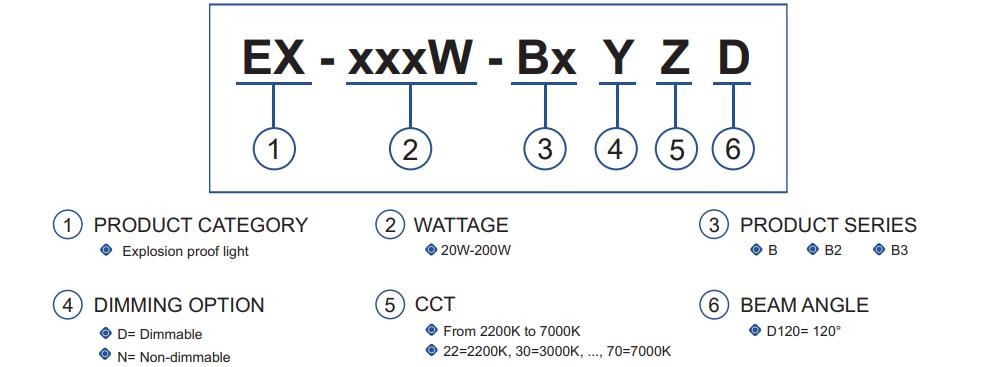

• Catalog Number Logic:

• Technical Data:

• Packing Information:

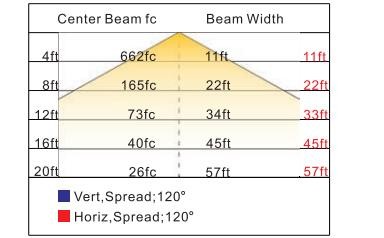

• Light Distribution: Beam Angle: 120°

• Dimensions:

Model B2

Model B3

• Mounting:

Stanchion Pendant Mounting:

• Applications:

Food and alcohol industry: flour and fine particle production and storage, food and distilling production, alcohol industry, etc

• FAQ

  Q1. Can I have a sample order ?

  Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
  Q2: Do you offer guarantee for the products?
  Yes, we offer 2-5 years warranty to our products.
  Q3: How to deal with the faulty?
  Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
  Secondly,during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we
  will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
