ATEX Certified 10~40W LED Explosion Proof High Bay Fixtures
ATEX Marking
II 2G Ex eb mb IIC T6/T5/T4 Gb
Il 2D Ex tb IIIC T80℃/T95℃/T130℃ Db IP66
IECEx Marking
Ex Eb mb IIC T6/T5/T4 Gb
Ex tb IIIC T80℃/T95℃/T130℃ Db IP66
UL844 Marking (North American)
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F,G
Class II, Division 2,Groups F, G
Class III
Marine Marking
UL 1598A
Other Rating
NEMA 3
4X
IP66
Compact structure, small size and light weight for easy
installation.
High vibration and impact resistance.
Protective metal cage against potential damage.
Tempered glass for high heat resistance.
Mounting ways: pendant, wall and end bracket mountings.
Beam angles are optional: 40°/60°/90°/120°.
Low temperature applications to -20°C (-4°F) and high temperature
up to 60°C (140°F).
Best-in-class efficacy up to 140 lumens per watt.
Environmentally Friendly 50,000 hours lifespan.
Waterproof and dust-proof, without internal cleaning and
maintenance.
5-year warranty.
Oil and gas industry
• All petroleum production and refining
• Petroleum loading and transportation
• Petroleum storage and retail
• LNG industry
• All mining operations and service
Ocean, marine and aerospace field
• Ocean platform operation facilities
• Aerospace clean room and production
• Ocean vessel operations
Food and alcohol industry
• Flour and fine particle production and storage
• Food and distilling production
• Alcohol industry
Chemical industry
• All types of paint facilities
• Chemical production and storage
Metal treatment
• Steel and aluminum factories
• Pumping stations in any environment
• Metal smelting, foundry and fabrication
Other high humidity, high dust, high temperature, vapor locations
Housing: Copper free aluminum
Lens: Tempered glass
WARNING Risk of fire, electric shock or personal injury. Please
turn o ffpower before installation!
READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING. KEEP THIS
INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY QUALIFIED ELECTRICIAN WHO IS FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDOUS
INVOLVED.
Fixtures must be wired in accordance with the National electrical
code and all applicable local codes. Proper grounding is required
for safety.
Risk of fire or electric shock. Exit light installation requires
knowledge of luminaires and electrical systems. DO NOT open the
enclosure when energized. DO NOT try to install if not qualified.
Please contact a professional electrician.
Risk of fire or electric shock. Suitable for wet locations. Make
sure the power is o ffprior to installation. Risk of fire or
electric shock. Suitable for non-insulated surface and frame. DO
NOT cover fixture with insulation liner or similar material.
DO NOT install in unstable, loose or breakable surfaces.
DO NOT let objects impact or exert force on the surface of the
fixture.
| Model | Wattage | Operating Voltage | Total Lumens(Im) | Efficacy(Im/W) | CRI | CCT |
| EX-10W OYZDA | 10W | AC100-277/220-480V | 1400 | 140 | >70 | 2200K-7000K |
| EX-20W OYZDA | 20W | AC100-277/220-480V | 2800 | 140 | >70 | 2200K-7000K |
| EX-30W OYZDA | 30W | AC100-277/220-480V | 4200 | 140 | >70 | 2200K-7000K |
| EX-40W OYZDA | 40W | AC100-277/220-480V | 5600 | 140 | >70 | 2200K-7000K |
| Model | Quantity/Carton | Packing Size(inch) | Net Weight(kg) | Gross Weight(kg) |
| EX-10W OYZDA | 1 PCS | 10.43*14.96*10.04 | 4.62 | 5.4 |
| EX-20W OYZDA | 1 PCS |
| EX-30W OYZDA | 1 PCS |
| EX-40W OYZDA | 1 PCS |
Ceiling Mounting:
Pole Mounting:

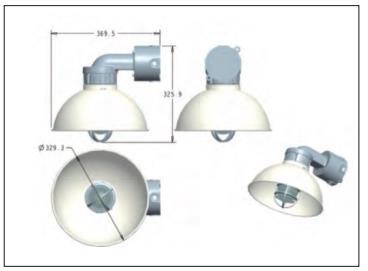

90° Walling Mounting (with Reflector):
90° Wall Mounting:
