ATEX Certified 10~250W LED Explosion Proof High Bay Fixtures

• STA123
• Classifications:

Class I, Division 2 Groups A, B, C, D

Class II, Division1 Groups E, F, G

Class II, Division 2 Groups F, G

Class III

Ul1598

UL1598A

Ambient Temperature:

-40℃ to 60℃ (-40℉ to 140℉)

IP66/IP67

IK09

• Application :

Oil and gas industry

• All petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail

• LNG industry

• All mining operations and service

Ocean, marine and aerospace field

• Ocean platform operation facilities

• Aerospace clean room and production

• Ocean vessel operations

Food and alcohol industry

• Flour and fine particle production and storage

• Food and distilling production

• Alcohol industry

Chemical industry

• All types of paint facilities

• Chemical production and storage

Metal treatment

• Steel and aluminum factories

• Pumping stations in any environment

• Metal smelting, foundry and fabrication

Other high humidity, high dust, high temperature, vapor locations.

• Key Features:

1. Angle disc design, faster installation and more precise adjustment of the aiming angle.

2. Stainless steel fasteners, better corrosion resistance.

3. ADC12 aluminum housing, good corrosion resistance.

4. Tempered glass, high light transmittance and impact resistance.

• Additional Features:

1. 0-10V dimming control.

2. Beam angles are optional: 40°/60°/90°/120°.

3. 5-year warranty.

• Standard Materials:

1. Body: ADC12 aluminum

2. Lens: tempered glass

3. Surface: explosion-proof joint surface.

• Features & Benefits:

Environmentally Friendly 50,000 hours lifespan.

Low temperature applications to -40°C (-40°F) and high temperature up to 60°C (140°F).

Best-in-class efficacy up to 120-140 lumens per watt.

Waterproof and dust-proof, without internal cleaning and maintenance.

Simple structure for easy and quick installation.

• Catalog Number Logic:

• Technical Data:

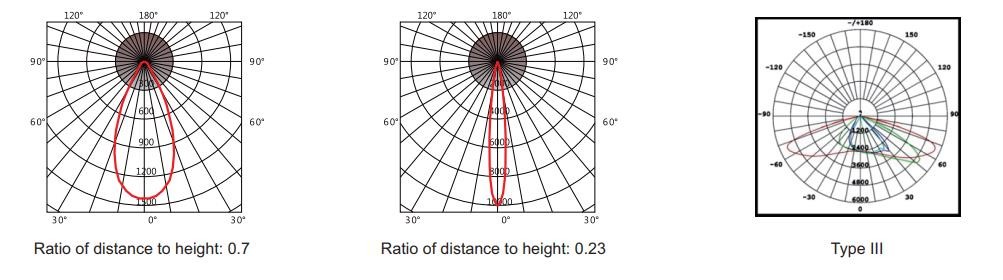

• Photometry:

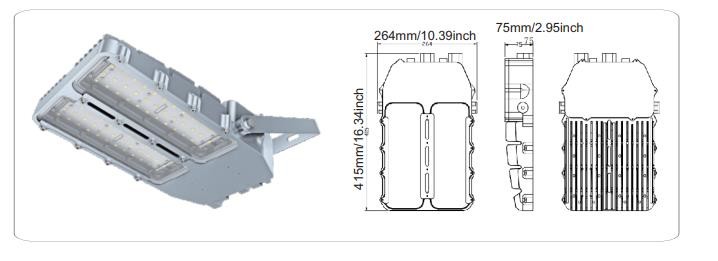

• Dimensions & Packing:

EX-xxxW-STA1

EX-xxxW-STA2

EX-xxxW-STA3

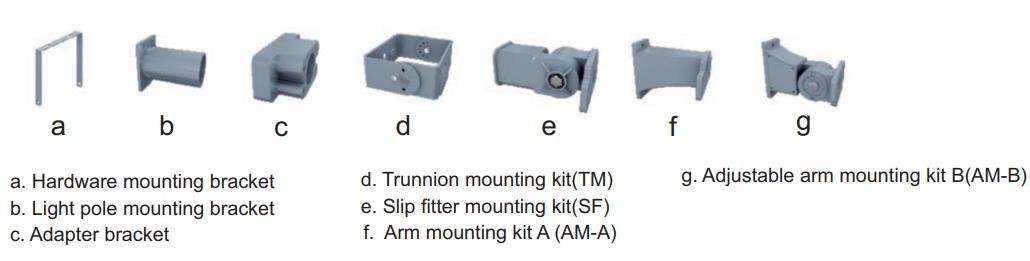

• Accessaries & Mounting Kits:

EX-xxxW-STA1/2

EX-xxxW-STA3

• STA124
• Classifications

II2 G Ex db eb mb IIC T5/T6 Gb

II2 D Ex tb op is IIIC T95/80℃ Db

Ambient Temperature:

-40℃ to 60℃ (-40℉ to 140℉) (T6, 10W-100W)

-40℃ to 60℃ (-40℉ to 140℉) (T5, 100W-250W)

-20℃ to 40 ℃ (-4℉ to104℉) (T6, 10W, in emergency)

IP66/IP67

IK09

• Key Features:

1. Independent wiring cavity makes wiring more convenient.

2. Angle disc design, faster installation and more precise adjustment of the aiming angle.

3. Stainless steel fasteners, better corrosion resistance.

4. Professional fin-shape channel design for faster heat dissipation.

5. Tempered glass, high light transmittance and impact resistance.

• Additional Features:

0-10V dimming control.

Beam angles are optional: 40°/60°/90°/120°.

5-year warranty.

• Standard Materials:

Body: ADC12 aluminum

Lens: tempered glass

Surface: explosion-proof joint surface.

• Features & Benefits:

1. Environmentally Friendly 50,000 hours lifespan.

2. Low temperature applications to -40°C (-40°F) and high temperature up to 60°C (140°F).

3. Best-in-class efficacy up to 120-140 lumens per watt.

4. Waterproof and dust-proof, without internal cleaning and maintenance.

5. Simple structure for easy and quick installation.

• Application :

Oil and gas industry

• All petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail

• LNG industry

• All mining operations and service

Ocean, marine and aerospace field

• Ocean platform operation facilities

• Aerospace clean room and production

• Ocean vessel operations

Food and alcohol industry

• Flour and fine particle production and storage

• Food and distilling production

• Alcohol industry

Chemical industry

• All types of paint facilities

• Chemical production and storage

Metal treatment

• Steel and aluminum factories

• Pumping stations in any environment

• Metal smelting, foundry and fabrication

Other high humidity, high dust, high temperature, vapor locations.

• Catalog Number Logic:

• Technical Data:

• Photometry:

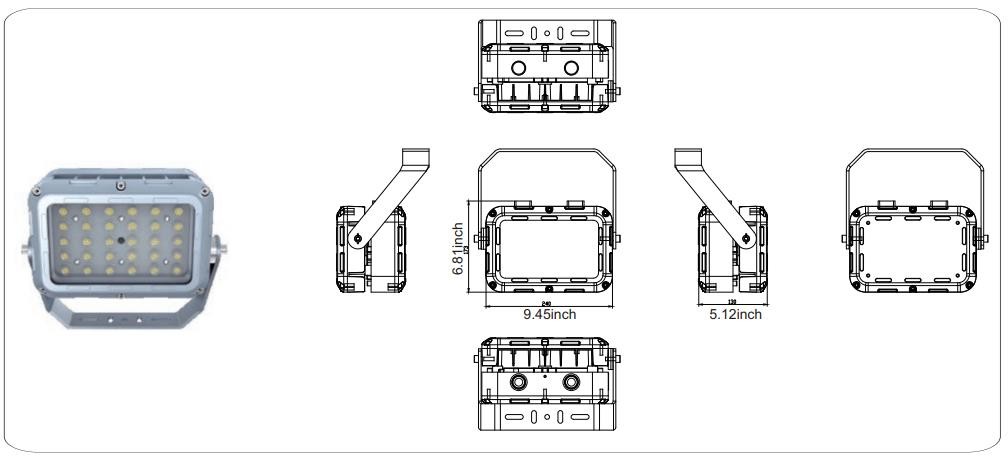

• Dimensions & Packing:

EX-xxxW-STA1

EX-xxxW-STA2

EX-xxxW-STA4 A

EX-xxxW-STA4 B

EX-xxxW-STA4 C

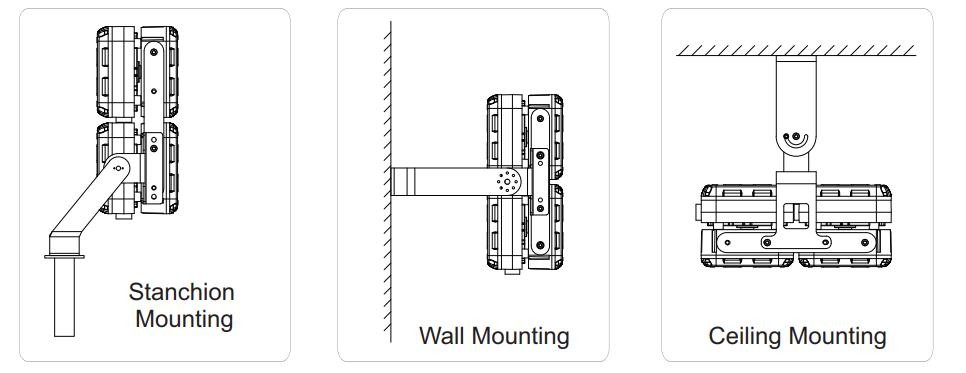

• Accessaries & Mounting:

EX-xxxW-STA1/2

EX-xxxW-STA4

Construction (STA 4) :

• QA:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production
