IP66 Emergency Exit Light for Dangerous Place ES02 SERIES EXIT SIGN

• Certifications:

ATEX Marking

Ⅱ 2 G Ex db IIB+H T6 Gb 2

Ⅱ 2 D Ex tb IIIC T70°C Db IP66

IP66

IECEx Marking

Ex db IIB+H T6 Gb

Ex tb IIIC T70°C Db

• Standard Materials: ​

Housing: Die-casting aluminum

Indicator: Tempered glass

Bolts: Stainless steel

Mounting Sling: Stainless steel

Panel: Glass

• Key Features:

Label content can be customizable.

Low working wattage for energy saving.

High leakproofness up to IP66.

3/4＂NPT or M25 conduit hubs.

Mounting ways: pendant, wall and end bracket mountings.

Hinged-access door.

Optics beam angle can be wide and narrow.

Edge-lit sign.

Can be used outdoors.

Various languages and exit signs are available.

• Additional Features:

Emergency backup battery for exit sign and spot light for contingency period of 180 minutes.

Two top bright spot lights can be adjusted in horizontal and vertical directions.

Long lifespan up to 50,000 hours.

5-year warranty.

• Installation Guidance:

WARNING Risk of fire, electric shock or personal injury. Please turn o ffpower before installation!

READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING. KEEP THIS INSTRUCTIONS FOR FUTURE REFERENCE.

THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY QUALIFIED ELECTRICIAN WHO IS FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDOUS INVOLVED.

Fixtures must be wired in accordance with the National electrical code and all applicable local codes. Proper grounding is required for safety.

Risk of fire or electric shock. Exit light installation requires knowledge of luminaires and electrical systems. DO NOT open the enclosure when energized. DO NOT try to install if not qualified. Please contact a professional electrician.

Risk of fire or electric shock. Suitable for wet locations. Make sure the power is o ffprior to installation.

Risk of fire or electric shock. Suitable for non-insulated surface and frame.

DO NOT cover fixture with insulation liner or similar material.

DO NOT install in unstable, loose or breakable surfaces.

DO NOT let objects impact or exert force on the surface of the fixture.

• Catalog Number Logic:

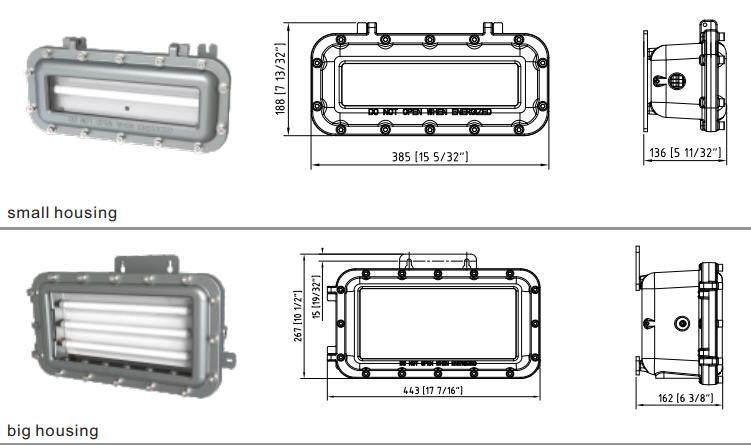

• Dimension & Technical Data​

EX-ES02C2 and EX-ES02C3: Junction Box or Emergency Backup Box

Type A1: Luminaire

Type A2: Luminaire + Emergency Backup Battery

Type B1: Emergency Backup + Luminaire (two pieces of spot light)

Type B2: Recessed EXIT Signs

Tpye B3: Pendant EXIT Sign + Emergency Backup Battery

Type B4: Recessed EXIT Sign + Luminaire (two pieces of spot light) + Emergency Backup Battery

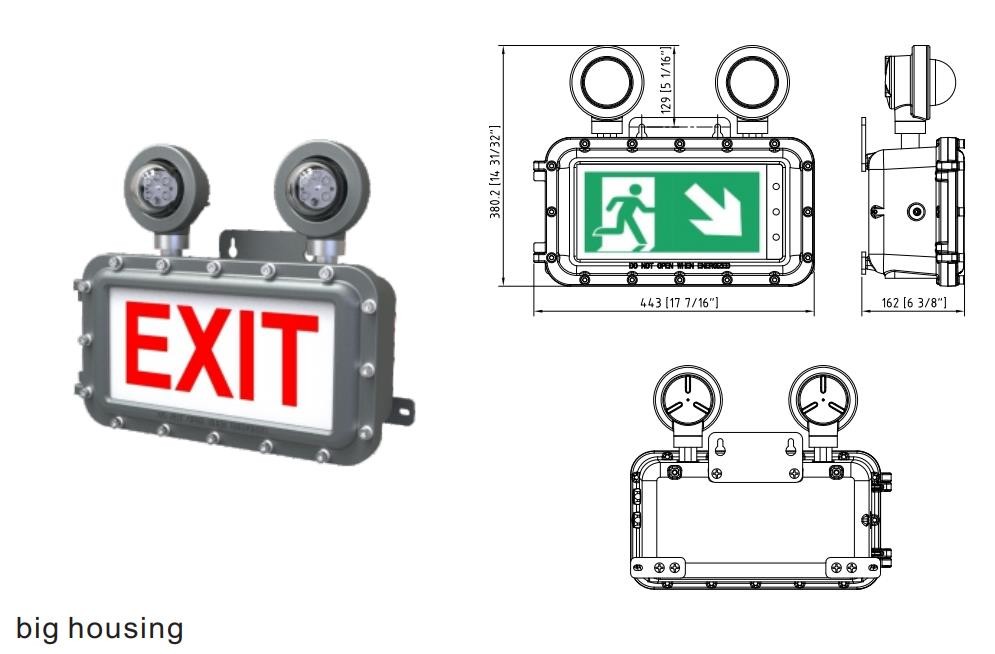

Type B5: Pendant EXIT Sign + Luminaire (two pieces of spot light) + Emergency Backup Battery

XX= Number “7~20”, represent how much wattage.

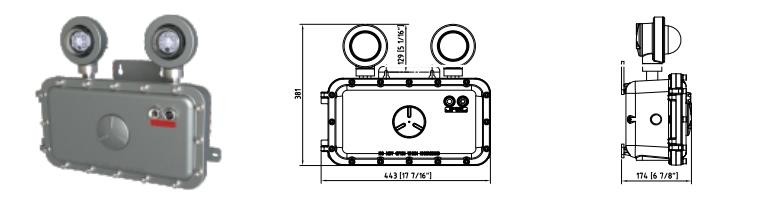

Type C&D: Emergency Light

• Packing Information:

• Mounting:

Wall Mounting with Bracket:

Wall Mounting with Arm:

Type B5

• QA:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.
