High Quality Dimmable And Battery Back Up Function Available IP66
Chemical Explosion Proof Lighting IK10 G SERIES
Essential details
- Color Temperature(CCT):
2200k-7000k
- Input Voltage(V):
AC100-277V/DC12-48V
- Lamp Luminous Efficiency(lm/w):
140
- Warranty(Year):
5-Year
- Color Rendering Index(Ra):
>70
- Support Dimmer:
Yes
- Lighting solutions service:
Lighting and circuitry design
- Lifespan (hours):
50000
- Working Time (hours):
50000
- Product Weight(kg):
4.65
- CRI (Ra>):
70
- Lamp Luminous Flux(lm):
1400-7000
- IP Rating:
IP66
- Working Lifetime(Hour):
50000
- Working Temperature(℃):
-40 - 65
- Place of Origin:
Guangdong, China
- Base Type:
/
- Light Source:
LED
- Housing:
Copper-free Aluminum
- Diffuser:
Tempered glass
- Bolts:
Stainless steel
- Mounting Bracket:
Stainless steel
Supply Ability
- Supply Ability
- 5000 Piece/Pieces per Month
Packaging & delivery
- Packaging Details
- Using neutral packing cartons, also accept customize packing as
clients' requirements.
- Port
- YANTIAN
- Lead time:
| Quantity(pieces) | 1 - 1 | >1 |
| Lead time (days) | 15 | To be negotiated |
Marking UL844 (North American)
Class I, Division 1, Groups C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
Marine Marking
UL1598, UL1598A
ABS
Other Rating
IP 66
IK 10
Housing:Copper free aluminum
Diffuser:Tempered glass
Bolts:Stainless steel
Mounting:Bracket :Stainless steel
10kV surge protection.
Up to ten years limited warranty option.
Low temperature applications to -40°C (-40°F) and high temperature
up to 65°C (149°F).

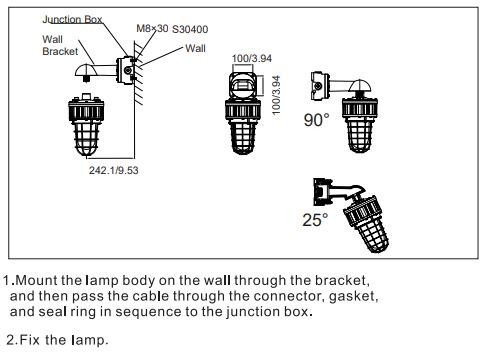

Various installation ways for different applications.
Emergency battery backup is optional.
Customized motion sensor is optional.
Advanced smart system: WIFI & BLUE-TOOTH (optional).
Adopt glass lens or glass with polycarbonate lens to make wider
beam angle.
! WARNING Risk of fire, electric shock or personal injury. Please
turn off power before installation!
READ INSTRUCTIONS CAREFULLY BEFORE INSTALLING. KEEP THIS
INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY QUALIFIED ELECTRICIAN WHO IS FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDOUS
INVOLVED.
Fixtures must be wired in accordance with the National electrical
code and all applicable local codes. Proper grounding is required
for safety.
Risk of fire or electric shock. Exit light installation requires
knowledge of luminaires and electrical systems. DO NOT open the
enclosure when energized. DO NOT try to install if not qualified.
Please contact a professional electrician.
Risk of fire or electric shock. Suitable for wet locations. Make
sure the power is o ffprior to installation.
Risk of fire or electric shock. Suitable for non-insulated surface
and frame. DO NOT cover fixture with insulation liner or similar
material.
DO NOT install in unstable, loose or breakable surfaces.
DO NOT let objects impact or exert force on the surface of the
fixture.
| Model | Wattage | Operating Voltage | Lumens(Im) | Efficacy(Im/W) | CRI | CCT | Emergency Time(Optional) |
| EX-10W GYZDA | 10W | AC100-277(by driver)or DC12-48V | 1400 | 140 | >70 | 2200K-7000K | 3 hours |
| EX-20W GYZDA | 20W | 2800 |
| EX-30W GYZDA | 30W | 4200 |
| EX-40W GYZDA | 40W | 5600 |
| EX-50W GYZDA | 50W | 700 |
| Model | Quantity/Ctn | Length(cm) | Width(cm) | Height(cm) | Net(KG) | Gross(KG) |
| G | 1 | 38 | 26.5 | 25.5 | 4.65 | 5.4 |
| G(+25° pole stanchion) | 1 | 51 | 56 | 26 | 6.5 | 8 |
Q1. Do you have any MOQ limit for order?
Low MOQ, 1pc for sample checking is available
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q3. How to proceed an order ?
Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our
suggestions.
Thirdly,customer confirms the samples and places deposit for formal
order.
Fourthly, We arrange the production.
Q4: Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.
